Slide Mod

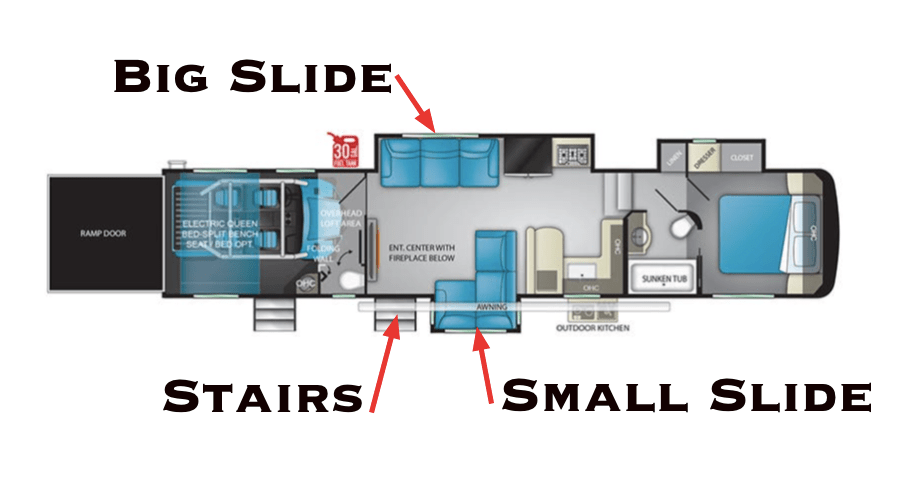

In order to get to the fridge/sink I need to open the large salon slide. But before that moves the opposing slide moves first. In or out. Finding 14′ (plus clearance) wide parking in a truck stop or rest area does not happen very often. In that case I need a foot or so on the big slide and another foot on the bedroom. So I need to keep the smaller hydraulic slide from moving. Talked to Heartland and they were not willing to discuss ANY kind of modification. “As per engineering….” prefaces every statement. They were also not responsive to my request for schematics. The next call to LCI was better, although he also had no data on my particular system. They just sell the bits to Heartland. He did say to look for a lockout valve. Pressure comes from a single source on the distribution block after the pump then goes to a splitter, if installed, with manual lockout valve(s). Here slides can be locked out. Haven’t found it yet…. I do not think they are installed on our units. He explained that if there isn’t one the slide with the least resistance goes first. Just like the landing gear, simple as that. So in this case I would have to install a few valves to lock out the one slide. He also explained that if I were to open the little (“first”) slide against a tree, it would stop and the other one would start. This gave me the idea that I could also simply install a mechanical lock on the small slide…….

First, it was time to map. Since these units do not come with any documentation you have to do it yourself. Here is the process, and here is the hydraulic map.
